Industrial L2+ 8-Port Gigabit PoE+ + 2 SFP Managed Ethernet Switch 240W
Overview
The ETH-IMC208MP is an industrial-grade L2+ managed Ethernet switch featuring 8
Gigabit PoE+ ports and 2 Gigabit SFP uplink ports. With up to 240W PoE power budget,
it supports IEEE802.3af/at devices such as IP cameras and wireless access points.
Designed for harsh environments (-40°C to 80°C), the switch provides advanced Layer 2+
functions, VLAN, QoS, redundancy protocols, and enhanced security. Its rugged IP40
aluminum housing, redundant power inputs, and USB-C management make it an ideal
solution for industrial automation, surveillance, and telecom networks.
Features
8×10/100/1000Base-T PoE+ RJ45 + 2×1000Base-X SFP ports
IEEE802.3af/at compliant with 240W total PoE budget
DIP switch for VLAN, Ring Management, PoE Reset & 250m extension
USB-C port for simplified management, no RS232 required
Advanced redundancy: STP/RSTP/MSTP/ERPSv2, Link Aggregation
Supports 4K VLAN, QinQ, IGMP Snooping, QoS, and ACL filtering
Strong security: 802.1X, RADIUS, SSH, HTTPS, DDOS protection
Rugged IP40 aluminum case, DIN-Rail mount, -40°C to 80°C
Dual 48–57VDC redundant power input with overload protection
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| IEEE802.3ae 10GBase-R |
| IEEE802.3p QoS |
| IEEE802.1d Spanning Tree |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| 1,488,000,000pps (10000Mbps) |
| Packet Buffer Memory: | 12M bits |
| Processing Type: | Store-and-Forward |
| Backplane bandwidth | 110Gbps |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Interface |
| Connector: | 8 x RJ45 |
| RS485: | 1 x RS485 (Optional) |
| Optical Port: | 2 x 1000Base-X SFP |
| USB-C: | 1 x USB-C (for Management) |
| RS485 Serial Interface (Optional) |
| Physical interface | Industrial standard 3-pin screw terminal |
| Data type | 1Ch RS485 Bi-Direction |
| RS-485 signals | Data +, Data-, GND |
| Serial port line distance (copper) | 1000 meters |
| Baud rate | 0 ~ 800kbps |
| PoE (Power over Ethernet) |
| Standard: | IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max.(PoE in Use<240W) |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| DIP Switch |
| 4-digit DIP switch function | DIP | Function | Settings |
| SW 1 | VLAN | ON - Enabled | OFF - Disabled |
| SW 2 | Ring Management | ON - Enabled | OFF - Disabled |
| SW 3 (to be upgraded) | 250m PoE Network | ON - Enabled | OFF - Disabled |
| SW 4 (to be upgraded) | PoE Reset | ON - Enabled | OFF - Disabled |
| LED Indicators: |
| PWR: | Power Status |
| Ethernet (Per Port): | Link/Activity |
| PoE: | PoE Status |
| Fiber: | Gigabit SFP Port: F9~F10 |
| Dimensions (WxDxH): | 149 x 114 x 50 mm |
| Weight: | 0.55Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| Software Features |
| Redundancy Protocols | Support STP/RSTP/MSTP/ERPSv2, Link Aggregation |
| Multicast Support | Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q |
| VLAN | Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN, |
| Time Management | SNTP |
| QOS | Flow-based redirection Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
| ACL | Port-based Issuing ACL ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc |
| PoE Management | Total power limit of PoE power supply PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation |
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping |
| Management Function | Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT |
| Alarm Management | Support 1 way relay alarm output, RMON, TRAP |
| Security | Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit |
| Advance Layer 2+ Features | IPv4/IPv6 Management Static Route |
| Regulatory Approvals |
| ISO9001, CE, RoHS, FCC |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| ETH-IMC208MP | Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |

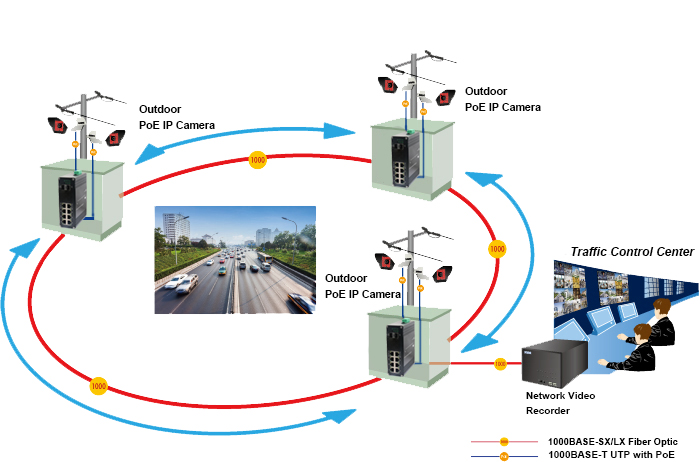

Application
