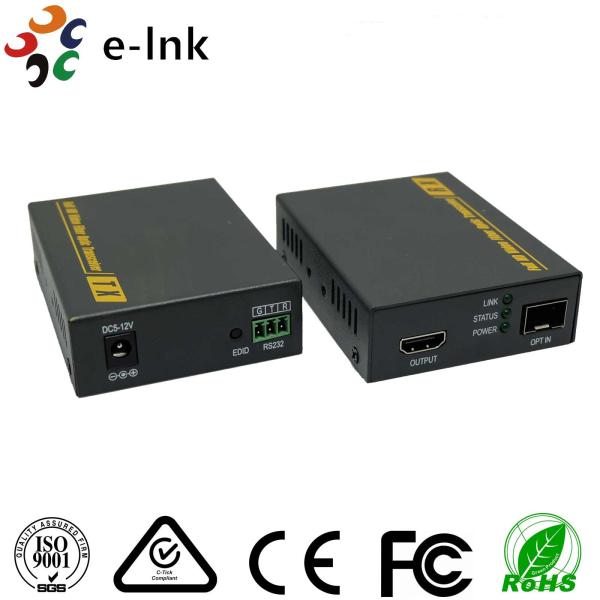

3860 x 2160 30Hz Fiber Optic To Hdmi Converter 3D Signal SM 2km 4K

Name: 3860 x 2160 30Hz Fiber Optic To Hdmi Converter 3D Signal SM 2km 4K
Brand: E-link China
Price: 1 USD

Buy cheap 3860 x 2160 30Hz Fiber Optic To Hdmi Converter 3D Signal SM 2km 4K product

Brand Name : E-link China

Model Number : LNK-HDMI-106H

Certification : CE, RoHS, FCC

Place of Origin : Shenzhen, China

MOQ : 1 pair

Payment Terms : T/T, Western Union, MoneyGram, L/C, Paypal

Supply Ability : 10000000000Pairs/Month

Delivery Time : 3-5 Working days

Packaging Details : 1 pair in 1 carton; Support OEM Service

Standards : HDMI 1.4

Maximum pixel clock : 225MHz

Maximum data rate : 6.75Gbps

Resolution range : Up to 3840*2160@30Hz

Connector : Female HDMI type A

Impedance : 100Ω

Interface : SFP model – LC connector

Fiber type : Single-mode

Wavelength : Single-mode 1310nm

Interface bandwidth : 10Gbps

Contact Now

3860 x 2160 30Hz Fiber Optic To Hdmi Converter 3D Signal SM 2km 4K

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.4
	Maximum pixel clock	225MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to *38402160@30Hz**
	Connector	Female HDMI type A
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	Single-mode 1310nm
	Interface bandwidth	10Gbps
	Transmission distance	Single-mode fiber: standard 2km；maximum 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	94.57326mm

3860 x 2160 30Hz Fiber Optic To Hdmi Converter 3D Signal SM 2km 4K

Port name	Description
HDMI IN/OUT	HDMI signal input/output
EDID	EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID.
DC/5V	Power adapter socket
FIBER	SFP model --- LC connector
LED indicator	Description
L	Optical fiber signal connection indicator
S	Video signal connection indicator
P	System power indicator

Ordering Information

Item	Description
Item	Description
LNK-HDMI-106H	4K2K HDMI Fiber Optic Extender, Compliance with HDMI1.4 standard, 38602160@30Hz, 3D signal, support EDID + HDCP + RS232 pass-through, LC(SFP), single mode, single fiber, 2km, including 1 transmitter & 1 receiver, used by pairs

Features

Transmits HDMI video signals up to 2km-10km over a pair fiber optic cable;
Support video resolution up to 3860*2160@30Hz, 3D signal;
Support copy EDID copy/pass-thru, can match many kind display device;
Compliance with HDMI 1.4 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Overview

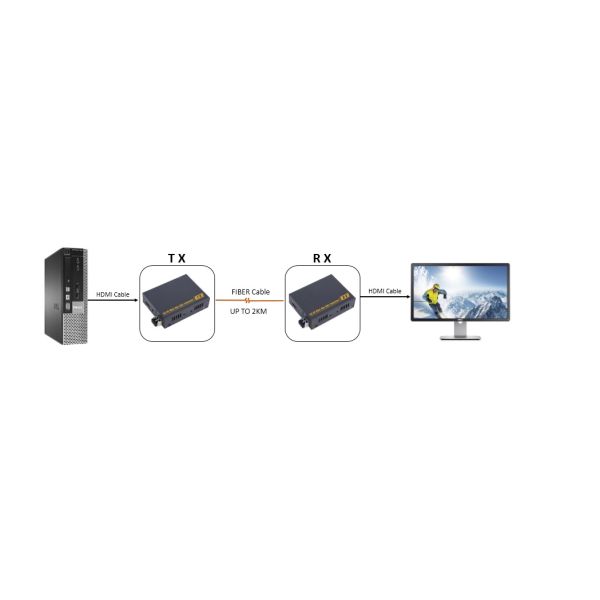

The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, EDID copy/pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

3860 x 2160 30Hz Fiber Optic To Hdmi Converter 3D Signal SM 2km 4K

Product Tags:

hdmi fiber optic cable extender

hdmi to optical converter box

3860 x 2160 30Hz Fiber Optic To Hdmi Converter 3D Signal SM 2km 4K Images
