10-18VDC Input Industrial Ethernet POE Switch With 5 Ports Gigabit POE+ 1 SFP Port

Name: 1018VDC Input Industrial Ethernet POE Switch With 5 Ports Gigabit POE 1 SFP Port
Brand: E-link
Price: 1 USD

Buy cheap 10-18VDC Input Industrial Ethernet POE Switch With 5 Ports Gigabit POE+ 1 SFP Port product

Brand Name : E-link

Model Number : LNK-GY104GP-12V Series

Certification : RoHS,CE,FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, , Western Union, T/T, MoneyGram

Supply Ability : 100000 PCS

Delivery Time : 5 Working days

Packaging Details : Standard Export Package

Connector : 5 x RJ45

Optical Port : 1 x SFP 1000Base-X

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

MTBF : > 200,000 hrs

Input Power : 10-18VDC

Power/Distance 54V : Distance: 100m

Standard : IEEE802.3af/at

Output Power Budget : 100W Max

Max. Power per Port : 30W Max per port (Alternative B Mode)

Contact Now

Industrial 5-port 10/100/1000BASE-T (4-port PoE+) + 1-port 1000BASE-FX SFP Ethernet Switch with 12VDC power input

Model: LNK-GY104GP-12V Series

LNK-GY104GP-12V is a 5 ports 10/100/1000Base-TX + 1 port 1000Base-FX SFP Industrial PoE switch with 12VDC power input. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over RJ-45 cable. SFP ports to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can chose different types of SFPs (1000M only). The Switch supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1M bits
Processing Type:	Store-and-Forward
MAC Table Size:	8K
Interface
Connector:	5 x RJ45
Optical Port:	1 x SFP 1000Base-X
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
PoE:
Input Power:	12VDC
Power/Distance 54V:	Distance: 100m
Power/Distance 54V:	Power: 26W
Standard:	IEEE802.3af/at
Port:	RJ45 Port 1 ~ Port 4
Max. Power per Port:	30W Max per port (Alternative B Mode)
Output Power Budget	100W Max.
Protection:
Overload Current:	Present
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet(Per Port):	Link/Activity
SFP:	Link/Activity
Dimensions (WxDxH):	40 x 145 x 145 mm
Weight:	0.8Kg
Casing:	Metal Case
Mounting Options:	DIN-Rail / Wall-mount/Desktop
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Features

· 4 10/100/1000 TX PoE ports and 1 1000 FX uplink port(SFP uplink)

· Support 12VDC (10~18VDC) Power Input

· Up to 30W on each PoE port

· Output power budget : 100W max

· Terminal Block Power Input for Industrial Application.

· To protect the external battery set

· Super lightening protection, IP40 protection

· Excellent heat elimination without cooling fan

· DIN-Rail/ Wall-mounting and Desktop Installation

· -40°C to 80°C (-40°F to 176°F) operating temperature

Warranty

· 5-Year Warranty

Ordering Information

Model	Description
LNK-GY104GP-12V	Industrial 5-port 10/100/1000BASE-T (4-port PoE+) + 1-port 1000BASE-FX SFP Ethernet Switch with 12VDC power input
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► 10~18VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

10-18VDC Input Industrial Ethernet POE Switch With 5 Ports Gigabit POE+ 1 SFP Port

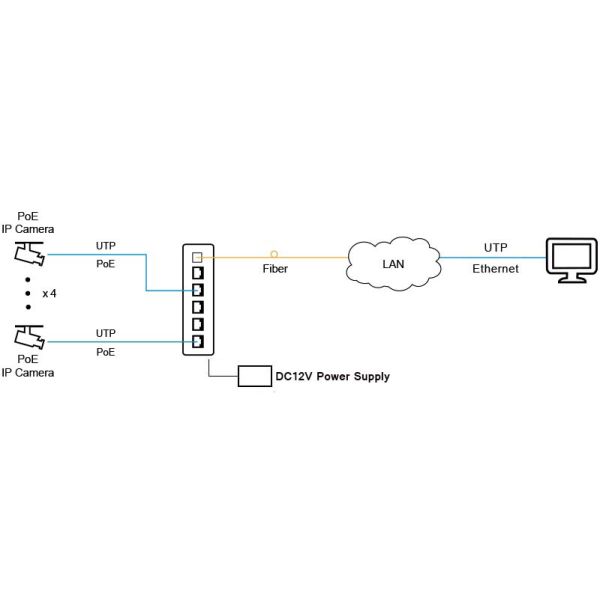

Application

10-18VDC Input Industrial Ethernet POE Switch With 5 Ports Gigabit POE+ 1 SFP Port
